Production capacity: 8–680 m3/h
Sieve layer: 2–4
Mesh size: 4–100 mm
Feeding size: <=400 mm
Motor power: 5.5–45 kw
Total weight: 3500–25500 kg
Material handling: powdery, granular materials, etc

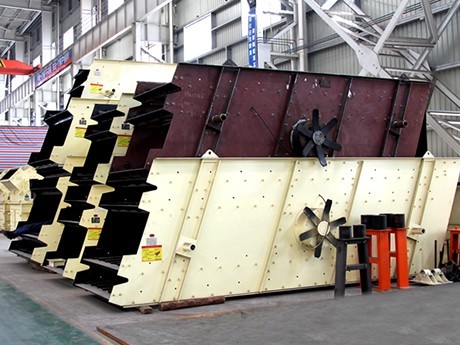

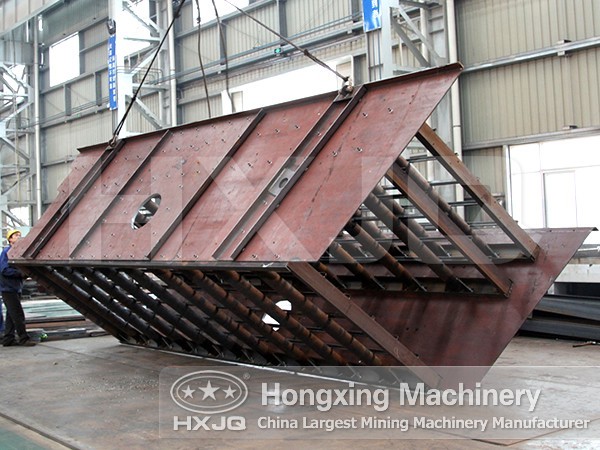

Circular vibrating screen is multi-layer, high-efficiency and new vibrating screen that moves on a circular motion. Circular vibrating screen adopts drum eccentric shaft exciter and eccentric block to adjust the vibration amplitude, so that the screening line is long and the screening specifications are more. Since it has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, circular vibrating screen is widely used for the product classification in mine, building material, transportation, energy and chemistry.
1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the circular vibrating screen has high screening efficiency and production efficiency.
2. The circular vibrating screen has simple structure and the dismantling and changing of the screen surface is convenient.
3. The electricity consumed to screen every ton of materials is low.
| Model | Sieve layer |
Sieve area (㎡) |
Mesh size (mm) |
Max. feeding size (mm) |
Processing capacity (m³/h) |
Vibrating Frequency (r/min) |
Double amplitude (mm) |
Motor power (kw) |
Sieve obliquity (°) |
Sieve specification (mm) |
Total weight (kg) |
Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 400 | 16-90 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 5200 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 6330 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 6800 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 6P 18.5 | 20 | 1500×4500 | 7800 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 15 | 20 | 1500×4800 | 6980 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 6P 15 | 20 | 1500×4800 | 7700 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 18.5 | 20 | 1500×4800 | 8700 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 9080 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 9600 | 5660×2550×1780 |
| 4YK1848 | 4 | 34.56 | 5-80 | 400 | 32-285 | 750 | 8 | 6P 22 | 20 | 1800×4800 | 11100 | 6290×2550×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 18.5 | 20 | 1800×5400 | 10150 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 10840 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 6P 30 | 20 | 1800×5400 | 12840 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 11780 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 12800 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 6P 37 | 20 | 2100×6000 | 14800 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 6P 37 | 20 | 2400×6000 | 15600 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 6P 37 | 20 | 2400×6000 | 17600 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 6P 45 | 20 | 2400×6000 | 19600 | 7600×3140×2380 |
| 2YK2870 | 2 | 39.2 | 5-100 | 400 | 120-680 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 21200 | 7600×4320×1620 |
| 3YK2870 | 3 | 58.8 | 5-100 | 400 | 180-720 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 22400 | 7800×4320×2120 |
| 2YK3072 | 2 | 43.2 | 5-100 | 400 | 200-700 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 23600 | 7800×4520×1750 |
| 3YK3072 | 3 | 64.8 | 5-100 | 400 | 230-800 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 25500 | 8000×4520×2300 |
Production capacity: 200 t/h
Processing material: river pebbles, quartz
Benefits: top notch technique support, all-round services
Production capacity: 250 t/h
Processing material: marble
Benefits: complete technique support, all-round services
